This is a British Seagull Wartime model.


SD 102, from 1942.

The SD 102 was manufactured 1942 to 1945.
As far as anyone is aware the wartime 102 was not used in the D-Day landings.
Information that they actually got used in WW2 is sketchy at best,
not a single british seagull has ever been shown in use during WW2.
The war time motors have a flywheel commonly known as a coolie-hat, the flywheel cover can be copper or aluminium.
It also has a wartime stamp on the skeg and more bronze and brass fitting than seen on later 102's.

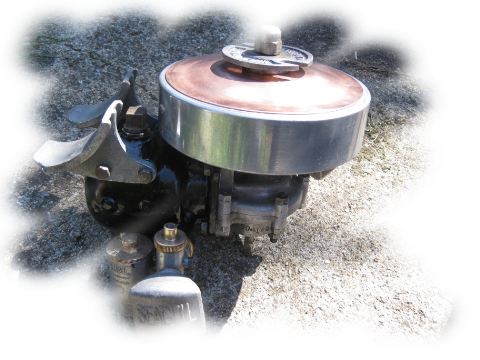

This is the 102 as I got it, other than some missing parts it's in pretty good condition.

It has been covered in more and more lacquer over the years, which is one thing that British Seagull told you to do, as it kept the rust away, the drive tube always rusts, as the plating was never very good to start with.
Villiers ignition system for the early 102
This ignition setup is pretty common in the 40's and is seen on others engines of this era.

After some time polishing, buffing and painting, it’s finished.



I replaced the prop, sent the drive tube off and had it re-plated, luckily I had a spare tank cap which are getting hard to find.
The bronze transom bracket is not original to the motor, this probably would have had a heavy angle iron transom bracket that fitted to the side of the boat, so most were thrown away and replaced with more user friendly ones, the bronze one looks more in keeping with this wartime motor.


The SD model, the studs that hold the cylinder block on are on the crank case, later model 102's will have the studs on the cylinder block.
This has the copper flywheel cover, aluminium tank mounts and brass air intake trumpet,
the brass trumpet is not fitted in the picture, it has now.
The gearbox has the wartime stamp on the skeg, the older 102's have grease nipples that are for oil,
rather than a filler plug on the front cap,
this type gearbox used heavier weight oil than the later models, parts varied over the years on most if not all British seagulls,
so a seagull may not always be what it seems.

The predecessor to the 102 was the Marston, the early Marston's had a teardrop exhaust and the later ones look similar to a normal 102’s,
as they were designed by the same person and had finned cylinder head.
I think the teardrop version is a beautiful motor and no I don’t own one,
they can be fragile and early parts are very thin on the ground, plus expensive.
